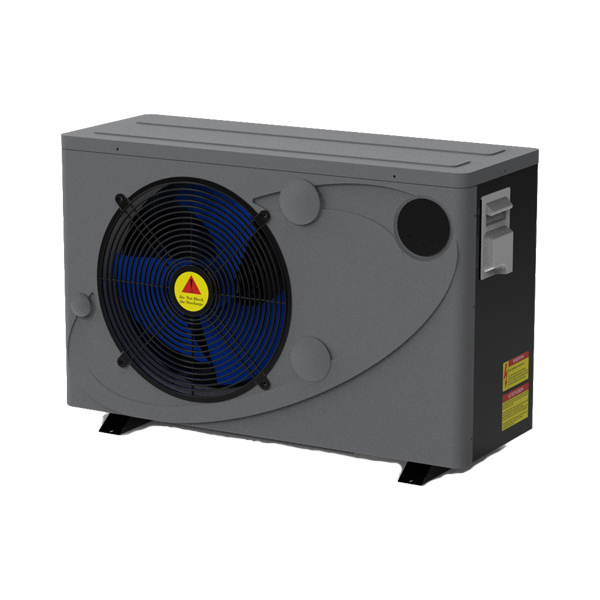

DC Inverter Swimming Pool Heat Pump-YAPS

立即咨询

Specification
Product introduction

型号				YAPS-80HI		YAPS-110HI		YAPS-135HI		YAPS-180HI		YAPS-210HI		YAPS-260HI
Heating Capacity in A27/W27℃ (Min-Max)		KW		3.5-8.5		3.7-11.2		5-13.5		6.5-17.9		6.7-20.9		8-26.1
Heating Input Power (Min-Max)		KW		0.3-1.3		0.3-1.7		0.4-2.1		0.54-2.8		0.55-3.2		0.7-4.1
Heating Capacity in A15/W26℃ (Min-Max)		KW		2.5-7		2.7-8.8		3-10.2		5.1-13.8		5.3-15.1		6-19.5
Heating Input Power (Min-Max)		KW		0.35-1.5		0.4-2		0.4-2.5		0.7-3.1		0.75-3.3		0.8-4.4
Water Flow Volume		m3/h		2-4		3-5		4-6		5-7		6-9		8-11
Cooling Running Current (Max)		A		8		12		14		20		23		28
Heating Running Current (Max)		A		7.7		11		13		18		21		26
Power supply		V/Ph/Hz		220~230V/1Ph/50Hz
